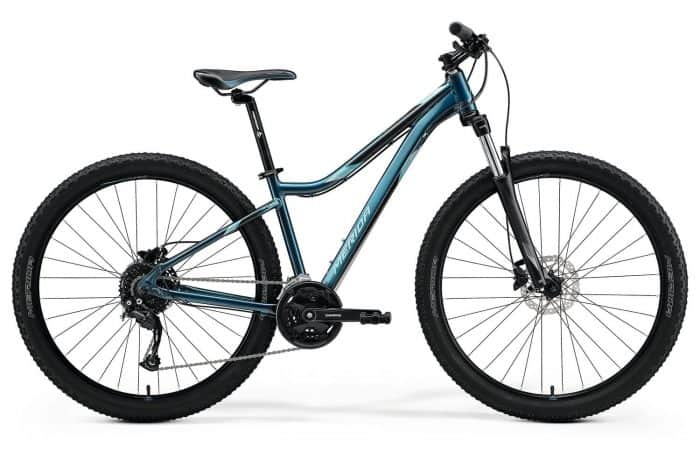

MERIDA Matts 7. 30

MATTS 7. SPEED-D
material: aluminium
27.5×2.25" max. wheelsize
135x9mm axle standard
BSA bottom bracket standard

Suntour XCT30 HLO
Coil
100mm suspension travel
Lockout
27.5×2.25" max. wheelsize

170 mm-XS/S, 175 mm-M/L

Shimano HG200
11-36 teeth
9 speed

Tektro HD-M275
2 piston

Vorne: Shimano RT10 160mm
Hinten: Shimano RT10 160mm

MERIDA COMP CC
material: aluminium
660mm width
25mm rise

FSA NO.10P Neck15

MERIDA CC
material: aluminium
31.8mm diameter
17° stem angle
XS/S/M-80 mm, L-90 mm

10mm*2

MERIDA COMP EC

Vorne: Shimano Altus
Hinten: Shimano Altus

Shimano MT101
40-30-22 teeth
170 mm-XS, 175 mm-M up

MERIDA K1080
27.5×2.2"
wire

Black steel

KMC M99

VP VPE-891

Vorne: Shimano M2000
Hinten: Shimano Alivio Shadow

MERIDA CC
material: aluminium
27.2mm diameter
15mm setback

MERIDA Sport comfort
